The first theoretical investigation on Tf−DMAP/DMAP-catalyzed addition−cyclization of carboxylic acid, crotonate sulfonium and amine was provided by our DFT calculation. First, the deprotonation of allyl sulfonium salt forms its ylide assisted by DMAP. Concurrently, acylpyridinium salt was afforded upon activa-tion of carboxylic acid under the help of TfDMAP giving TfOH. Subsequently, the nucleophilic attack between the above two generates corresponding intermediate, which proceeds double bond shift followed by con-densation of keto function with amine. Finally, C−N bond formation undergoes via SN2 nucleophilic substitu-tion mode to complete aza five-membered ring, the aromatization of which yields desired product 1,2,3-trisubstituted pyrrole via conjugate transfer. Comparatively, the double bond shift in step 4 is deter-mined to be rate-limiting.

As privileged structural motifs, functionalized heterocycles are frequently encountered in pharmaceutical industry as biologically active molecules [1-3]. In this field, pyrrole is a crucial class of five-membered, nitro-gen-containing heterocycle well-known as Lipitor and dietary supplements [4,5]. In agrochemicals, flavors, and optoelectronic materials, pyrrole derivatives function as versatile building blocks. Czichy discovered elec-trochemical polymerization of pyrrole−perimidine hybrids: low-band-gap materials with high n-doping activity [6]. Zhao gave [3,4-c]pyrrole-4,6-dione-mediated crystallinity in large-band gap polymer donors directs charge transportation and recombination in efficient nonfullerene polymer solar cells [7]. Wang reported a DFT study on electroreduction NO to NH3 over single metal atom anchored on pyrrole type defective graph-eme [8]. The scaffold bearing aryl at 1-, 2-, 3-positions are particularly valuable just as Yousuf’s addi-tion−annulation of arylboronic acid and substituted aliphatic nitriles in one-pot synthesis of 3-substituted 2-arylpyrrole [9]. However, the regioselective synthesis of substituted pyrroles is still challenging despite Knorr, Paal−Knorr, and Hantzsc methods [10]. Hence, facile approach to polysubstituted pyrroles is useful in organic chemistry. The crotonate-derived sulfur ylide is well-known to access carbo- and heterocyclic framework in cascade annulation. Chen researched formal [4 + 1] annulation in synthesis of carbocyclic and heterocyclic system [11]. Lu summarized recent advances in catalytic cyclization of sulfur ylides beyond sulfide-centric catalysis [12]. Gouthami achieved syntheses of 2-aroyl benzofurans through cascade annulation on arynes [13]. In addition, Kaiser found bond-forming and breaking reactions at sulfur(IV): sulfoxides, sulfonium salts, sulfur ylides, and sulfinate salts [14]. Aher gave Cp*Co(III)-catalyzed C amination/annulation cascade of sulfoxonium ylides with anthranils for the synthesis of indoloindolones [15]. Ushakov reviewed application of ylide-like species in [4 + 1]-annulation reaction [16]. Chen obtained substrate-directed divergent annulations of sulfur ylides in synthesis of functionalized bispirocyclopentane and bispirocyclopropane [17]. Thereby these building blocks combining α, β-unsaturated ester were proved to be versatile and exhibit dual reactivity [18-20]. Many progresses have been reported in this field such as rapid and scalable synthesis of oxazoles directly from carboxylic acids of Chavan group [21], triflylpyridinium enables controlled reduction of carboxylic acids to aldehydes using pinacolborane of Chen as well as coupling reagent in rapid amide and ester synthesis [22,23]. There’s also novel photoswitchable molecules derived from rimonabant to highly selective and na-nomolar “cis-on” CB1R antagonist [24]. The latest breakthrough was addition–cyclization of carboxylic acid, crotonate-derived sulfonium and amine [25]. Although 1,2,3-trisubstituted pyrrole was synthesized in regi-oselective mode, how acylpyridinium salt was afforded via activation of carboxylic acid? How allyl sulfonium was deprotonated assisted by DMAP to form ylide as C3 synthon? What’s the concrete process including subsequent nucleophilic attack, double bond shift, condensation, and C−N bond formation?

Structures were optimized at M06-2X/6-31G(d) level with GAUSSIAN09 [26]. Among various DFT methods [27], M06-2X functional has smaller deviation between experimental and calculated value than B3LYP hybrid functional [28,29]. With 6-31G(d) basis set, it can provide best compromise between time consumption and energy accuracy. It was also found to give accurate results for stepwise (2 + 2) cycloaddition, enantioselective (4 + 3) and Diels−Alder reaction [30,31]. Together with good performance on noncovalent interaction, it is suitable for this system [32-34]. To obtain zero-point vibrational energy (ZPVE), harmonic frequency calculations were carried out at M06-2X/6-31G(d) level gaining thermodynamic corrections at 298 K and 1 atm in Toluene. At M06-2X/6-311++G(d,p) level, the solvation-corrected free energies were obtained using integral equation formalism polarizable continuum model (IEFPCM) [35-39] on M06-2X/6-31G(d)-optimized geometries. NBO procedure was performed with Natural bond orbital (NBO3.1) obtaining lone pair and bond to characterize bonding orbital interaction and electronic properties [40-42]. Using Multiwfn_3.7_dev package [43].

The mechanism was explored for Tf−DMAP/DMAP-catalyzed addition−cyclization of carboxylic acid 1, cro-tonate sulfonium salt 2, and amine 3 leading to 1,2,3-trisubstituted pyrrole 4 (Scheme 1). As illustrated by Scheme 2, first, the allyl sulfonium salt 2 was deprotonated assisted by DMAP to form its ylide A. Concurrently, acylpyridinium salt B was afforded upon activation of carboxylic acid 1 by TfDMAP. Subsequently, the nucleo-philic attack of A to B generates corresponding intermediate C after removal of DMAP. C converts to interme-diate D via subsequent double bond shift followed by condensation of keto function with amine 3 furnishing intermediate E. Finally, E undergoes C−N bond formation giving five-membered F, the aromatization of which yields desired 1,2,3-trisubstituted pyrrole 4. Figure 1 listed schematic structures of optimized TSs in Scheme 2. Table 1 gave activation energy for all steps.

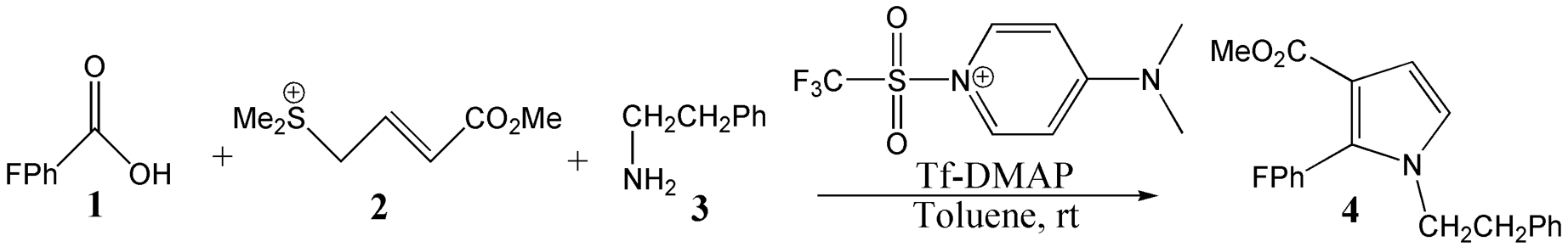

Scheme 1: Tf−DMAP/DMAP-catalyzed addition−cyclization of carboxylic acid 1, crotonate sulfonium salt 2, and amine 3 leading to 1,2,3-trisubstituted pyrrole 4.

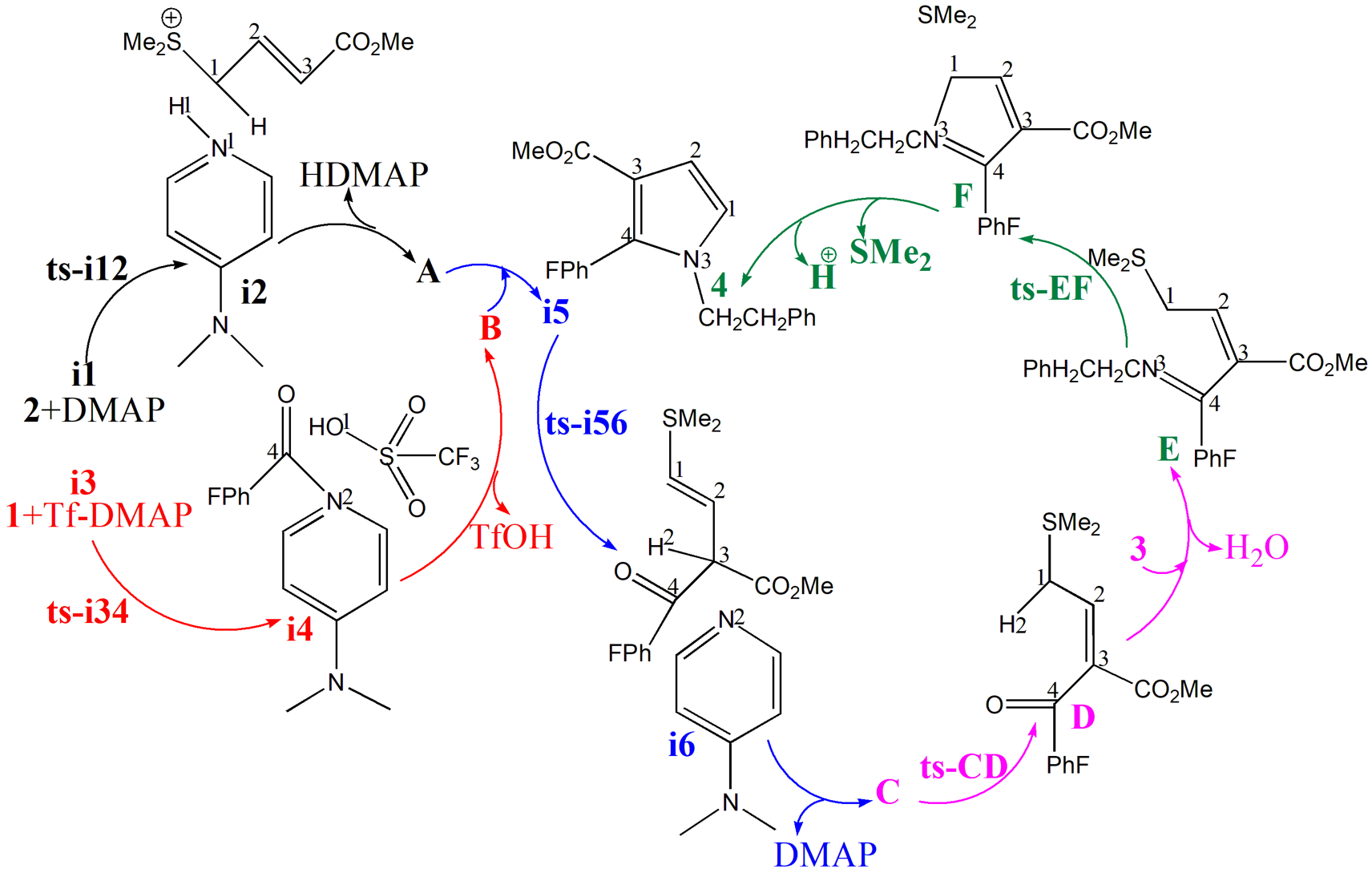

Scheme 2: Proposed reaction mechanism of Tf−DMAP/DMAP-catalyzed addition−cyclization of 1, 2, 3 leading to 4. TS is named according to the two intermediates it connects.

3.1 deprotonation of allyl sulfonium/activation of carboxylic acid

Binding DMAP and allyl sulfonium salt, the first complex i1 is formed as starting point of step 1 (black dash line of Figure 1). 2 was deprotonated under the help of DMAP via ts-i12 with the activation energy of 16.1 kcal mol−1 endothermic by 11.4 kcal mol−1 producing reactive i2. The transition vector corresponds to proton transferring from C1 of 2 to N1 of DMAP as C1···H1···N1 (1.45, 1.26 Å) (Figure S1a). After proton capture by base DMAP, the ylide A of 2 was afforded along with its resonance-stabilized zwitterionic intermediate, of which the negative charge is located on C3 ready for nucleophilic attack.

Concurrently, the intermediate i3 binding carboxylic acid 1 and additional TfDMAP is taken as new starting point of next step (red dash line of Figure 1). Upon activation of TfDMAP, 1 lost hydroxyl group via ts-i34 with increased activation energy of 20.8 kcal mol−1 instep 2 endothermic slightly by 1.0 kcal mol−1 leading to i4. The transition vector is complicated involving breaking of C4···O1, linkage of O1···S and resultant cleavage of DMAP N2 from S to acyl C4 as S···N2···C4 (2.56, 1.8, 2.6, 2.47 Å) (Figure S1b). Once typical C4-N2 single bond is available in i4, the positive acylpyridinium saltB bonded to DMAP was generated in addition to TfOH.

Table 1: The activation energy (in kcal mol−1) of all reactions in gas and solvent

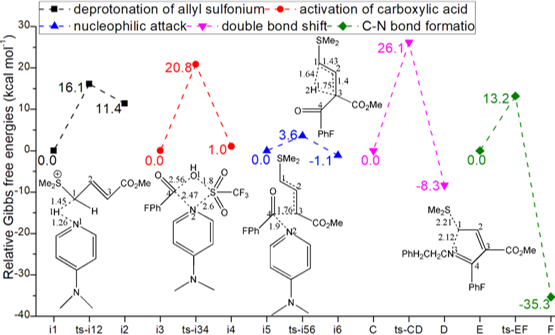

Figure 1: Relative Gibbs free energy profile in solvent phase starting from complex i1, i3, i5, C, E (Bond lengths of optimized TSs in Å).

3.2 nucleophilic attack/double bond shift/C−N bond formation

Subsequently, with A and B in hand, the complex i5 was starting point of step 3 (blue dash line of Figure 1). The nucleophilic attack of A to B takes place via ts-i56 with small activation energy of 3.6 kcal mol−1 exothermic by -1.1 kcal mol−1 giving i6. The transition vector of C3···C4···N2 denotes positive acyl group C4 was leaving from DMAP N2 and bonding to negative C3 (1.76, 1.9 Å). After removal of recovered DMAP, the corresponding intermediate C was generated with sp3 hybrid C3 and typical C1=C2 double bond.

Next, C converts to intermediate D via ts-CD to complete double bond shift with activation energy of 26.1 kcal mol−1 exothermic by -8.3 kcal mol−1 in step 4 (magenta dash line of Figure 1). According to the transition vector, this was achieved through proton H2 transfer from C3 to C1 as C3···H2···C1 along with shortening of C2···C3 and elongation of C1···C2 (1.75, 1.64, 1.43, 1.4 Å) (Figure S1c). The resulting D is stable owing to its conjugated structure involving carbonyl C4=O and new C2=C3 double bond.

With amine 3, the condensation of keto function of D furnishes intermediate E, in which the carbonyl C4=O turns to be C4=N3 imine group. Finally, E undergoes C−N bond formation via ts-EF with decreased activation energy of 13.2 kcal mol−1 exothermic huge by-35.3 kcal mol−1 in step 5 (olive dash line of Figure 1). The transition vector suggests typical SN2 nucleophilic substitution mode including approaching of N3 to C1 and concerted breaking down of C1-S via N3···C1···S (2.12, 2.21 Å)(Figure S1d). The C1-N3 single bond indicates aza five-membered ring is completed in last intermediate F. After leaving of SMe2 and one proton, C1 becomes sp2 achieving aromatization and yielding1,2,3-trisubstituted pyrrole 4 with conjugated C1=C2, C3=C4 double bond. Comparatively, the double bond shift in step 4 is determined to be rate-limiting for Tf−DMAP/DMAP-catalyzed addition−cyclization of carboxylic acid, crotonate sulfonium and amine.

In summary, the first theoretical investigation was provided by our DFT calculation on Tf−DMAP/DMAP-catalyzed addition−cyclization of carboxylic acid, crotonate sulfonium and amine. First, the deprotonation of allyl sulfonium salt forms its ylide assisted by DMAP. Concurrently, acylpyridinium salt was afforded upon activation of carboxylic acid under the help of TfDMAP giving TfOH. Subsequently, the nucleophilic attack between the above two generates corresponding intermediate, which proceeds double bond shift followed by condensation of keto function with amine. Finally, C−N bond formation undergoes via SN2 nucleophilic substitution mode to complete aza five-membered ring, the aromatization of which yields desired 1,2,3-trisubstituted pyrrole product via conjugate transfer. Comparatively, the double bond shift in step 4 is determined to be rate-limiting for Tf−DMAP/DMAP-catalyzed addition−cyclization of carboxylic acid, crotonate sulfonium and amine.

Supplementary data available: [Computation information and cartesian coordinates of stationary points; Cal-culated relative energies for the ZPE-corrected Gibbs free energies (ΔGgas), and Gibbs free energies (ΔGsol) for all species in solution phase at 298 K.]
