Acute coronary syndromes (ACS) are major cardiovascular emergencies requiring prompt and appropriate management to reduce complications and improve prognosis. We report a particular case of high-risk NSTEMI in a 63-year-old patient with hypertrophic cardiomyopathy (HCM) and coronary artery amyloid infiltration. Cardiac exploration revealed severe triple-vessel disease with myocardial necrosis sequelae, leading to a recommendation for coronary artery bypass grafting. This rare association complicates management due to structural alterations from amyloid infiltration and increased ischemic and arrhythmic risks. This case highlights the importance of a multidisciplinary approach and rigorous follow-up to adapt the therapeutic strategy to clinical complexity.

Acute coronary syndromes (ACS) are primarily the result of atherosclerotic plaque rupture, platelet activation, and intracoronary thrombosis, causing myocardial ischemia. However, atypical forms, especially those associated with infiltrative diseases like amyloidosis, present a diagnostic and therapeutic challenge. Cardiac amyloidosis is a rare infiltrative disease characterized by extracellular deposition of amyloid fibrils, which can lead to restrictive myocardial dysfunction and involvement of small coronary vessels. The association of hypertrophic cardiomyopathy (HCM) with amyloid coronary infiltration further complicates the clinical presentation, altering the ACS manifestation and influencing therapeutic decisions. We report here the case of a patient hospitalized for high-risk NSTEMI in whom cardiological exploration revealed severe coronary artery disease with amyloid infiltration, justifying the indication for coronary artery bypass grafting in a context of chronic atrial fibrillation and moderate heart failure.

A 63-year-old male with a medical history of chronic atrial fibrillation on anticoagulants, moderate heart failure, type 2 diabetes, active smoking, and hypertrophic cardiomyopathy (HCM) was admitted for high-risk non-ST-segment elevation myocardial infarction (NSTEMI). On admission, he presented with angina and exertional dyspnea. His blood pressure was 130/77 mmHg and heart rate was 85 bpm, with no signs of acute decompensated heart failure. Electrocardiogram (ECG) showed atrial fibrillation with a ventricular rate of 85 bpm and repolarization abnormalities in the inferior territory. Transthoracic echocardiography revealed significant concentric left ventricular hypertrophy with preserved ejection fraction (LVEF at 55%). A global longitudinal strain suggestive of amyloidosis, showing a characteristic “apical sparing” pattern.

Figure 1: Significant concentric LVH, predominant at the septal level.

Figure 2: Apical Sparing” Pattern on Longitudinal Strain Imaging Suggestive of Cardiac Amyloidosis

Coronary angiography revealed severe triple-vessel disease, with a mid-LAD (left anterior descending artery) occlusion involving an aneurysmal segment, a long and tight stenosis of the circumflex artery, and a chronic total occlusion of the right coronary artery with collateral network compensation. Cardiac magnetic resonance imaging (MRI) showed myocardial necrosis sequelae at the apex of the left ventricle (segment 17) and diffuse subendocardial late gadolinium enhancement, strongly suggestive of amyloid infiltration.

Figure 3: Cardiac MRI findings in suspected cardiac amyloidosis (T2 Mapping showing myocardial edema and PSIR sequence demonstrating diffuse subendocardial gadolinium enhancement

Laboratory tests revealed:

•               Serum sodium: 134 mmol/L

•               Serum potassium: 4.8 mmol/L

•               Serum creatinine: 8.8 mg/L

•               Estimated glomerular filtration rate (eGFR): 93 mL/min/1.73 m²

•               C-reactive protein (CRP): 4 mg/L

•               Hemoglobin: 12.6 g/dL

Serologic tests for HBV, HCV, HIV, and syphilis (TPHA/VDRL) were all negative.

Management included dual antiplatelet therapy (Plavix), beta-blockers (Cardensiel), calcium channel blockers (Vascor), and oral anticoagulation (Sintrom) with regular INR monitoring. Due to the complexity of the coronary lesions and the underlying infiltrative pathology, a multidisciplinary team decided on surgical coronary artery bypass grafting (CABG).

The association between hypertrophic cardiomyopathy and acute coronary syndrome (ACS) is relatively rare, and its management becomes more complex when combined with amyloid infiltration of the coronary arteries. Cardiac amyloidosis, characterized by extracellular deposition of amyloid fibrils in the myocardium and coronary vessels, may provoke myocardial ischemia through microvascular impairment and increased myocardial stiffness. In this case, multimodal imaging demonstrated both major obstructive coronary lesions and diffuse amyloid infiltration, explaining the progression toward heart failure and chronic atrial fibrillation.

The presence of a chronic total occlusion of the right coronary artery, compensated by collateral circulation, reflects a silent evolution of the coronary pathology exacerbated by the amyloid context. Coronary artery bypass grafting was selected over angioplasty due to the inefficacy of stenting in infiltrated vessels, where structural distortion compromises long-term outcomes. Additionally, treatment planning had to consider elevated thromboembolic and hemorrhagic risks due to chronic atrial fibrillation and anticoagulation therapy. The prognosis remains guarded, with a heightened risk of progressing to advanced heart failure and ventricular arrhythmias. This case underscores the value of comprehensive imaging and multidisciplinary collaboration involving cardiologists, cardiac surgeons, and specialists in infiltrative diseases to tailor management strategies.

The following three graphs illustrate:

•               Evolution of left ventricular ejection fraction (LVEF) before and after management: This curve shows a progressive decline in LVEF without intervention and stabilization following revascularization.

•               Incidence of post-ACS complications in patients receiving medical therapy alone versus revascularization: It highlights an increased risk of complications in patients not undergoing revascularization compared to those receiving invasive treatment.

•               Survival curve based on management strategy: This graph demonstrates improved long-term survival in patients who underwent revascularization.

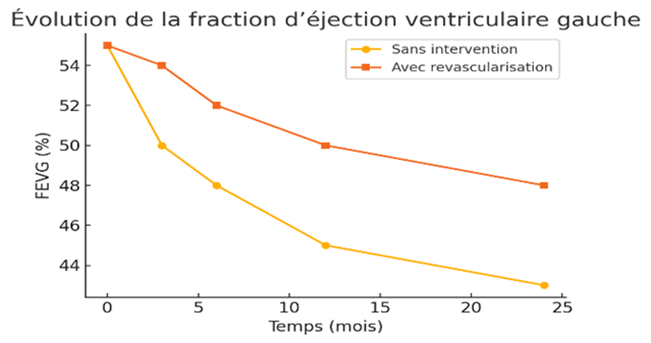

Figure 4: Evolution of Left Ventricular Ejection Fraction (LVEF) Before and After Management

Figure 5: Incidence of Post-ACS Complications – Medical Therapy vs. Revascularization

Figure 6: Survival Curve Based on Treatment Strategy

This case highlights the diagnostic and therapeutic challenges of acute coronary syndromes associated with cardiac amyloidosis. The involvement of small coronary vessels and myocardial stiffening alter the classical presentation of ACS and complicate diagnosis. Multimodal imaging plays a critical role in diagnosis and in guiding therapy. In the context of severe coronary artery disease and increased myocardial rigidity, surgical revascularization is often preferred, as percutaneous interventions are less effective in amyloid-infiltrated arteries. A multidisciplinary and patient-tailored approach is essential to optimize outcomes and long-term survival.
