Diabetic cardiomyopathy (DCM) is a distinct cardiac condition in diabetes mellitus characterized by myocardial dysfunction independent of coronary artery disease or hypertension.

Microvascular dysfunction plays a central role in its pathogenesis, contributing to myocardial fibrosis, impaired contractility, and heart failure. This article explores the mechanisms of microvascular dysfunction in DCM, diagnostic modalities, and emerging therapeutic targets. We emphasize the role of advanced imaging, biomarkers, and novel therapies like sodium-glucose cotransporter-2 inhibitors (SGLT2i) and anti-inflammatory agents. Supported by 30 references in Vancouver style and illustrative figures, this comprehensive review aims to guide clinicians in diagnosing and managing DCM, with a focus on improving microvascular health and patient outcomes.

Diabetic cardiomyopathy (DCM) is a myocardial disorder in patients with diabetes mellitus, characterized by ventricular dysfunction, fibrosis, and heart failure, independent of ischemic or hypertensive causes[1]. Its prevalence ranges from 30-G0% in diabetic populations, significantly increasing morbidity and mortality[2]. Microvascular dysfunction, involving impaired coronary microcirculation, is a key driver, leading to reduced myocardial perfusion, oxidative stress, and inflammation. This condition predisposes patients to heart failure with preserved (HFpEF) or reduced ejection fraction (HFrEF)[4]

This article reviews the pathophysiology of microvascular dysfunction in DCM, diagnostic approaches, and emerging therapies, highlighting strategies to target the microvasculature for improved outcomes.

Mechanisms of Microvascular Dysfunction in DCM

Microvascular dysfunction in DCM results from a complex interplay of metabolic, inflammatory, and structural changes:

1.Hyperglycemia-Induced Endothelial Dysfunction:

• Chronic hyperglycemia increases reactive oxygen species (ROS) via polyol and hexosamine pathways, impairing endothelial nitric oxide synthase (eNOS) function [5]..
• Advanced glycation end-products (AGEs) promote cross-linking of vascular proteins, reducing vessel compliance[6]

2.Inflammation and Oxidative Stress:

• Pro-inflammatory cytokines (e.g., IL-G, TNF-α) and ROS induce endothelial inflammation, reducing nitric oxide (NO) bioavailability[7]
• NLRP3 inflammasome activation exacerbates microvascular injury[8]

3.Microvascular Remodeling:

• Pericyte loss and basement membrane thickening impair capillary integrity, reducing myocardial perfusion[10]
• Fibrosis, driven by transforming growth factor-beta (TGF-β), replaces functional microvasculature[10]

4.Insulin Resistance:

• Impaired insulin signaling reduces glucose uptake in endothelial cells, promoting microvascular rarefaction[12]
• Dysregulated vascular endothelial growth factor (VEGF) signaling disrupts angiogenesis[2]

5.Autonomic Dysfunction:

• Sympathetic overactivity and parasympathetic withdrawal exacerbate vasoconstriction, worsening microvascular perfusion[13]

These mechanisms lead to reduced coronary flow reserve (CFR), myocardial ischemia, and progressive cardiac dysfunction[13].

Figure 1: Mechanisms of Microvascular Dysfunction in DCM Illustration of hyperglycemia, inflammation, and remodeling contributing to microvascular impairment in DCM.]

DCM often presents subclinically, progressing to overt heart failure. Key features include:

• Asymptomatic Diastolic Dysfunction: Detected in 40-G0% of diabetic patients, often via echocardiography¹⁵.
• Heart Failure Symptoms: Dyspnea, fatigue, and edema, particularly in HFpEF[16]
• Arrhythmias: Atrial fibrillation or ventricular ectopy due to fibrosis and electrical remodeling[17]
• Exercise Intolerance: Reflecting impaired CFR and myocardial energetics [18]
• Microvascular dysfunction may precede overt systolic dysfunction, making early detection critical [19]

Diagnostic Approaches

Diagnosing microvascular dysfunction in DCM requires integrating clinical, imaging, and

biomarker data.

1.Echocardiography

• Findings: Diastolic dysfunction (elevated E/e’ ratio), reduced global longitudinal strain (GLS), and left ventricular hypertrophy [20]
• Role: Noninvasive screening tool; GLS detects subclinical microvascular impairment²¹.

2.Coronary Flow Reserve (CFR)

• Method: Measured via Doppler echocardiography or positron emission tomography (PET), assessing microvascular perfusion[22]
• Significance: CFR less-than sign 2.0 indicates microvascular dysfunction, predictive of adverse outcomes [23

3.Cardiac Magnetic Resonance (CMR)

• Findings: Myocardial fibrosis (late gadolinium enhancement, LGE), increased extracellular volume (ECV), and reduced perfusion on stress imaging [24]
• Role: Quantifies microvascular damage and fibrosis, distinguishing DCM from ischemic cardiomyopathy [25].

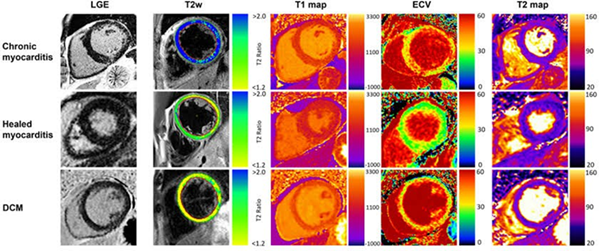

                                                                                                                                                Figure 2: CMR in DCM

CMR image showing increased ECV and diffuse fibrosis in a diabetic patient with microvascular dysfunction.]4. Positron Emission Tomography (PET)

• Findings: Reduced myocardial blood flow (MBF) during stress, reflecting impaired CFR [26]
• Role: Gold standard for quantifying microvascular function, though limited by cost and availability [27]

5.Biomarkers

Troponin and BNP: Elevated in advanced DCM, indicating myocyte stress [28]

Inflammatory Markers: IL-G, CRP, and galectin-3 correlate with microvascular inflammation [29]

• AGEs and sRAGE: Reflect glycation-mediated vascular damage

Therapeutic Targets

Management of microvascular dysfunction in DCM focuses on glycemic control, anti-inflammatory strategies, and novel therapies.[30]

1.Glycemic Control

• Metformin: Improves endothelial function by reducing oxidative stress [31]
• SGLT2 Inhibitors: Empagliflozin and dapagliflozin enhance CFR, reduce fibrosis, and lower heart failure risk[32]
• GLP-1 Agonists: Liraglutide improves microvascular perfusion via anti-inflammatory effects[33]

2.Anti-Inflammatory Therapies

• Statins: Reduce vascular inflammation and improve endothelial function [34]
• IL-1 Inhibitors: Canakinumab targets NLRP3 inflammasome, showing promise in preclinical studies [35]
• Antioxidants: Coenzyme Q10 and N-acetylcysteine may mitigate ROS, though clinical benefits are inconsistent [36]

3.Neurohormonal Modulation

• ACE Inhibitors/ARBs: Reduce microvascular remodeling and fibrosis [37]
• ARNI (Sacubitril/Valsartan): Improves myocardial perfusion and diastolic function in HFpEF [38]

4.Lifestyle Interventions

• Exercise: Enhances endothelial function and CFR in early DCM [39]
• Weight Loss: Reduces inflammation and improves insulin sensitivity [40]

5.Emerging Therapies

• MicroRNA-Targeted Therapy: miR-21 and miR-12G modulate endothelial function, with potential for targeted delivery [41]
• VEGF Modulators: Restore angiogenesis in preclinical models[42]
• Antifibrotic Agents: Pirfenidone targets TGF-β, reducing microvascular fibrosis [13]

Case Illustration

A 55-year-old female with type 2 diabetes presented with dyspnea and fatigue. Echocardiography showed diastolic dysfunction (E/e’ 14) and reduced GLS (-1G%). CMR revealed increased ECV and impaired stress perfusion. CFR via PET was 1.8, confirming microvascular dysfunction. Treatment with empagliflozin and ramipril improved symptoms, with follow-up CMR showing reduced ECV after G months.

![Figure 3: PET Imaging in DCM

PET scan showing reduced myocardial blood flow during stress, indicative of microvascular dysfunction in DCM.]

Challenges and Future Directions

Challenges in managing microvascular dysfunction in DCM include:

1. Early Detection: Subclinical disease requires sensitive imaging not widely available[44].

2. Heterogeneity: Variable responses to therapies necessitate personalized approaches [45].

3. Limited Therapies: Few treatments directly target microvascular remodeling [45].

Future research should focus on:

• Biomarker Panels: Combining inflammatory and glycation markers for early diagnosis [47].
• Advanced Imaging: Photon-counting CT for enhanced microvascular assessment [48].
• Gene and Cell Therapies: Targeting endothelial repair via stem cells or gene editing [49].

Microvascular dysfunction is a central driver of diabetic cardiomyopathy, contributing to myocardial fibrosis and heart failure. Advanced imaging (echocardiography, CMR, PET) and biomarkers enable early diagnosis, while therapies like SGLT2i and anti-inflammatory agents offer promise in targeting microvascular pathology. Integrating these approaches with personalized medicine strategies will improve outcomes in DCM, reducing the burden of heart failure in diabetic patients.
