Purpose:

This manuscript synthesizes and integrates a series of previously published innovative sonographic concepts into a unified framework of Functional Lung Ultrasound (FLUS), introducing lung ultrasound as a real-time bedside functional “visual spirometry” tool. Rather than focusing on artefact-based interpretation, it reframes pulmonary sonography as a structural–functional imaging modality. The primary aim is to systematize the diagnostic meaning of novel sonographic entities—namely the Twinkling White Area (TWA), Bat Sign dynamics, vascular echo patterns, and pleural separation—with particular emphasis on lung ultrasound’s role in the bedside functional diagnosis, phenotyping, and monitoring of obstructive lung syndromes, within a coherent physiological and pathophysiological model of peripheral lung function.

Methods:

This work is based on a structured reinterpretation of serial ultrasound examinations previously performed in healthy subjects and in over 600 patients with obstructive, interstitial, infectious, malignant, and vascular lung diseases, as reported across separate original publications. Sonographic features of the Merlin Space—including pleural line behavior, rib-shadow geometry, TWA morphology, and respiratory excursion—are collectively reanalyzed and integrated with their corresponding CT correlations, morphologic substrates, and hemodynamic implications in order to construct a reproducible structure–function continuum.

Results:

The TWA is consolidated as a genuine subpleural reflective interface dynamically linked to peripheral lung density, representing the baseline architectural unit of the aerated lung. The Bat Sign is redefined as a functional continuum rather than a static landmark: the Healthy Bat preserves symmetric TWA geometry, rib-shadow distance, and respiratory motion, whereas the Sick Bat exhibits deformation, asymmetry, and altered dynamics reflecting early parenchymal or obstructive involvement. The Front Sight in Rear Sight sign is confirmed as a dual-vascular echo configuration corresponding to pulmonary infarction supported by bronchial collateral perfusion. Posterior basal pleural separation emerges as a functional marker of chronic, non-exudative, viscerally confined pleural–subpleural remodeling rather than acute inflammatory pleural disease.

Conclusion:

This integrated framework formally establishes Functional Lung Ultrasound (FLUS) as a real-time, bedside “visual spirometry” modality, in which echo morphology, motion analysis, and perfusion patterns translate directly into functional assessment of airflow, density distribution, and peripheral vascular dynamics. By unifying structural and physiological echo phenomena, FLUS positions lung ultrasound as a true functional imaging tool for obstructive, interstitial, infectious, malignant, and vascular lung syndromes.

For decades, lung ultrasound spoke in the language of artefacts — lines, shadows, and reverberations that echoed the limits of imaging the air-filled lung. But within those echoes, something real was always waiting: a geometry that breathed, a structure that pulsed, a pattern that was not illusion but physiology in motion. This marks the beginning of a new understanding — the recognition that the normal lung image is not a random play of reflections but a coherent, structured baseline with measurable features: shape, continuity, proportion, and symmetry. At its heart lies the Twinkling White Area (TWA) — the dynamic subpleural field where peripheral densities interweave in a living biological process. TWA is not an artifact but a signature of organization, a reflection of ventilation–perfusion harmony. When this organized field begins to deform — when continuity fades or geometry fractures — the image evolves into pathology. This transition defines the Sick Bat Sign, where structural distortion replaces the balanced geometry of the Healthy Bat Sign. Disease does not invent new echoes; it alters the architecture of the existing image

Among these transformed patterns, some hold diagnostic precision:

• The Front Sight in Rear Sight Sign reveals dual perfusion — peripheral pulmonary arterial occlusion with preserved central bronchial collateral flow.
• The progressive alteration of the TWA pattern delineates the continuum from healthy aeration to inflammation, infection malignancies, fibrosis, or infarction.
• Healthy bat sign versus Chiroptera sign. It is a dilemma whenever we see an image of lung ultrasound. This approach is like a “window” through which you can see how the weather is.
• Lung ultrasound enables accurate bedside identification of emphysematous, bronchial remodeling, particularly through expiratory changes of length and wide of TWA, rib shadow distortion, and pleural-rib distance reduction. These sonographic patterns are storytellers that reflect regional and phenotypic heterogeneity and may serve as real-time, non-invasive surrogates for spirometry in the evaluation of obstructive syndrome.
• Posterior basal pleural separation with unequal pleural, thickness represents an important marker for distinguishing acute from chronic lung involvement, including differentiation between acute and chronic pulmonary embolism.

Thus, lung ultrasound transcends the traditional vocabulary of artefacts and becomes a true structural language—a visual grammar of physiology and pathophysiology. Each image reflects a dynamic equilibrium between air, tissue, and blood flow. Within this geometric framework, the lung is no longer an echo chamber but a living morphological, functional map, in which brightness, shadow, and form mirror real-time cardiopulmonary interaction.

Innovative Conceptual Framework in Lung Ultrasound

A Dynamic Subpleural Morphologic–Functional Tissue–Air Interface

TWA represents the true subpleural reflective interface, an area where peripheral tissue densities interweave dynamically in an active biological process, rather than an acoustic artifact. It belongs to the Merlin Space, a structured reflective corridor bounded by the pleural line and rib shadows, whose dimensions and echo patterns vary with physiology and pathology. This defines the structural baseline for normal lung imaging (figure 1) [1].g (figure 1) [1].

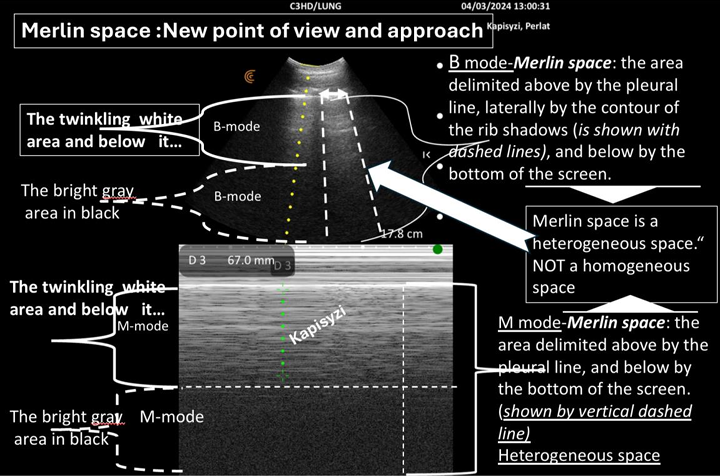

Figure 1: Merlin space, twinkling white area. Kapisyzi, P. ©

Morphologic Integrity versus Structural Distortion of the Peripheral Lung

According to Lichtenstein and other authors, the “bat sign” is a configuration composed of the ribs and their shadows, standing for the bat’s wings, and the pleural line, representing its body. When examining the bat’s wings from beginning to end (where the beginning is the ribs and the extension are the shadows of the ribs), the body cannot be depicted as a simple line but rather as a truncated cone with its base at the pleural line. Thus, the bat’s body aligns with the hyper-echoic, twinkling area in the Merlin space. Therefore, it is crucial not only to see the bat’s wings but also its body. Recognizing the normal appearance of the bat’s body (hyper echoic twinkling white area) along with the bat sign (ribs’s line and shadow, pleural line) is essential for early detection of injuries, known as “sick bat,” in the lungs [2]. The Bat Sign evolves from a static anatomical landmark to a functional morphologic continuum. Healthy Bat: preserved TWA geometry, harmonious rib shadows, and homogeneous echotexture. Sick Bat: deformation of TWA dimensions (width, length, contour) and irregular rib-shadow dynamics, revealing early parenchymal or obstructive pathology. This model replaces the concept of 'artefactual patterns' with real structural descriptors (Figure 2), [2].

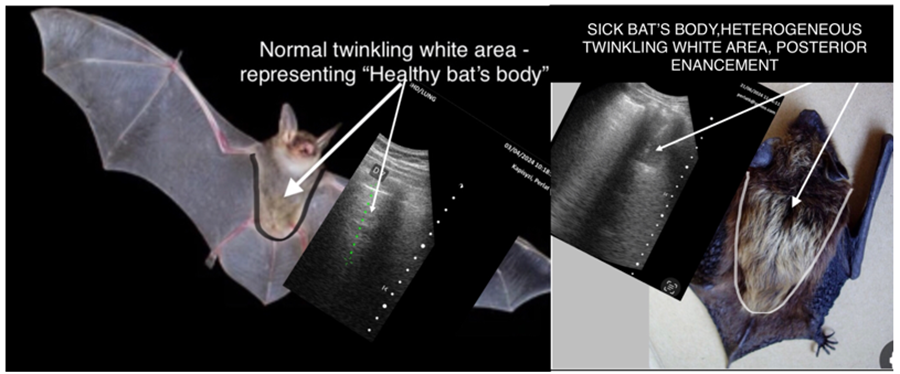

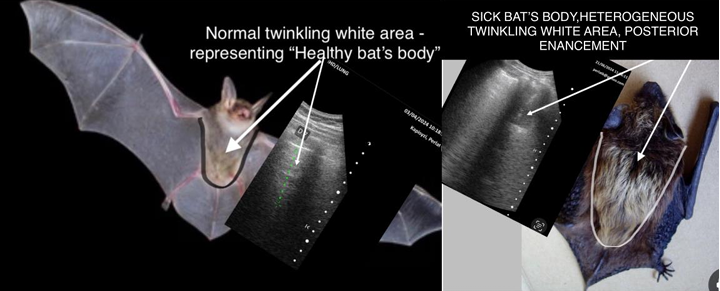

Figure 2: Healthy bat sign versus sick Chiroptera sign. Kapisyzi, P. ©

A Geometric–Functional Hemodynamic Signature of Pulmonary Infarction

The Front Sight in Rear Sight Sign represents a distinct hemodynamic and geometric echo-phenotype of pulmonary infarction, appearing within the Sick Bat progression.

It is defined by two symmetric hypoechoic zones (A)—corresponding to infarcted, non-perfused pulmonary segments—flanking a central preserved region (B) that remains perfused through bronchial arterial collateral flow.

This configuration creates a triphasic geometric pattern in which:

• Zone A (bilateral hypoechoic wedges) reflects abrupt interruption of pulmonary arterial perfusion.
• Zone B (central isoechoic or preserved band) represents the bronchial rescue zone, the only territory still receiving oxygenated blood through the systemic bronchial arteries.
• The interface between zones A and B produces a sharp, weapon-sight–like alignment, giving the sign its characteristic appearance.

Functionally, this sign establishes one of the clearest direct visual correspondences in lung ultrasound: echo morphology mirroring dual vascular supply (pulmonary vs. bronchial artery).

By making the dual-circulation physiology visible at the bedside, the Front Sight in Rear Sight Sign elevates pulmonary infarction from a non-specific “wedge-shaped hypoechoic area” to a structured hemodynamic signature, advancing the geometric-functional paradigm of this new framework. A hemodynamic echo-sign of pulmonary infarction, characterized by two hypoechoic zones (A) flanking a central preserved region (B) sustained by bronchial collateral perfusion. It establishes a direct visual correlation between echo morphology and dual vascular supply, contributing to functional interpretation of vascular injuries (Figure 3), [2].

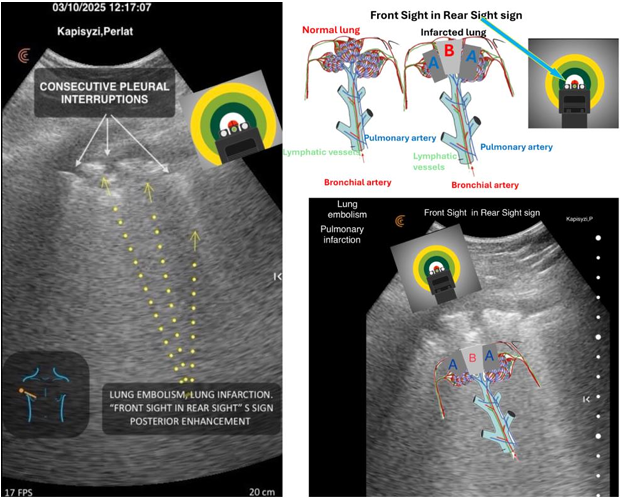

Figure 3: Lung infarction: Front Sight in Rear Sight sign. Kapisyzi, P. ©

A Pathology-Oriented Approach

Lung ultrasound interpretation can benefit from adopting a descriptive, pathology-focused terminology, akin to approaches used in advanced imaging techniques like CT or MRI. These modalities emphasize anatomical and pathological findings over the technical processes that generate the images. For example: CT reports describe “ground-glass opacities” or “hyperdense masses,” without referring to imaging mechanisms like iterative reconstruction. Similarly, LU should prioritize findings' clinical relevance over their physical origins. Proposed Terminological Changes: A-Lines: Describe as horizontal hyper-echoic lines (not as artifact) indicating (except normal lung) increased air/fluid ratios, observed in conditions like COPD, asthma, or pulmonary embolism. B-Lines more than three refer to as vertical streaky hyper-echoic densities (not as artifact), reflecting interstitial fluid accumulation. C-Lines: Describe as pleural thickening, irregularities without hypo or hyper echoic densities with pleural interruptions to improve precision.

This conceptual shift reshapes the fundamental interpretive framework of lung ultrasound, advancing beyond the reductionist artifact terminology of A- and B-lines. LUS is viewed as real tissue-interface imaging, where each echo expresses a structural or physiological interaction within the lung parenchyma (Figure 4,5,6), [3].

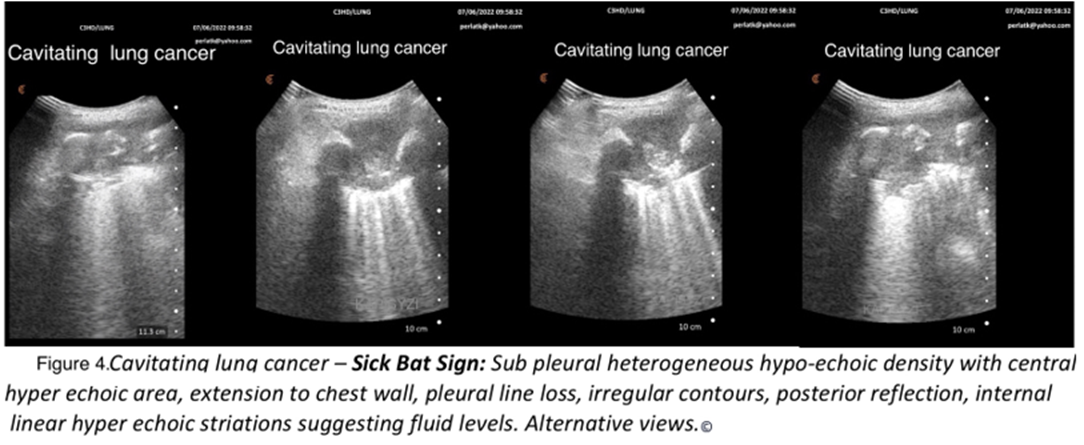

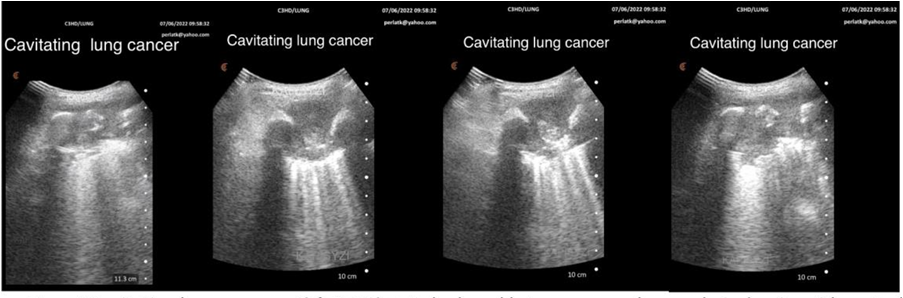

Figure 4. Cavitatina lung cancer - Sick Bat Sign: Sub pleural heterogeneous hypo-echoic desity with central hyper echoic area, extension to chest wall, pleural line loss, irregular contours, posterior reflection, internal linear hyper echoic striations suggesting fluid levels. Alternative views.©

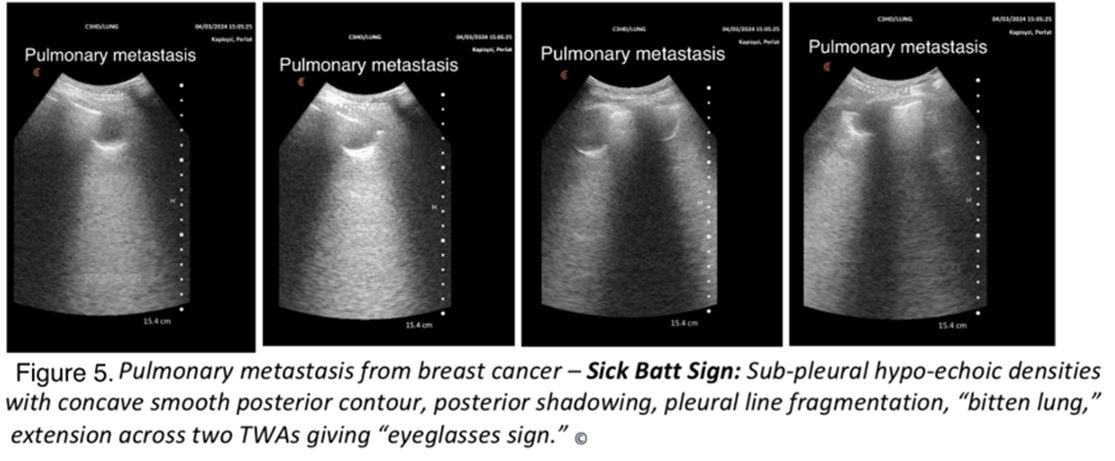

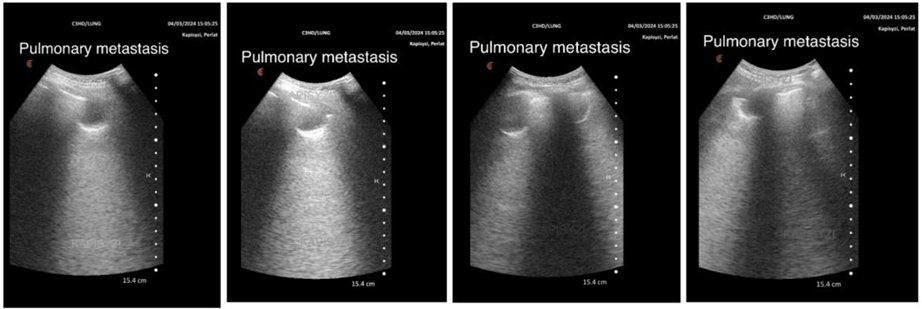

Figure 5. Pulmonary metastasis from brest cancer - Sick Batt Sign: Sub-pleural hypo-echoic densities with concave smooth posterior contour, posterior shadowing, pleural line fragmentation, "bitten lung," extension across two TWAs giving "eyeglasses sign."

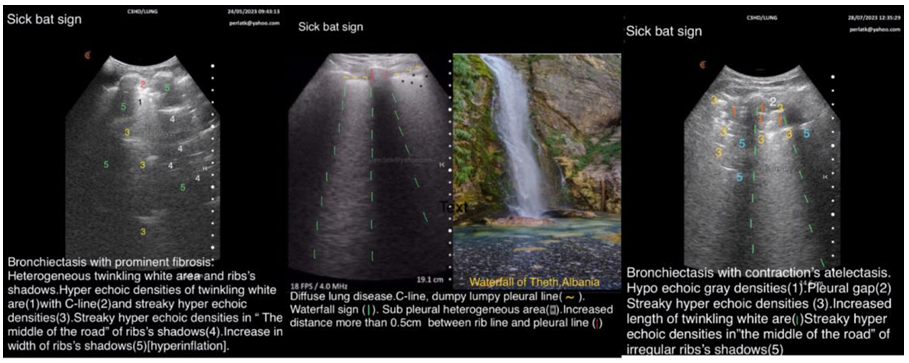

Figure 6. Sick bat sign. Linear, streaky hyper echoic densities, hypo echoic gray densities. Posterior enhancements, irregular rib's shadows (characteristic of bronchiectastis). Waterfall sign-intra alveolar inflammation, transudation.

Innovative Conceptual Framework in Functional Lung Ultrasound

As we have emphasized throughout this innovative framework, mastering

the geometry and functional behavior of the healthy Merlin Space—particularly the morphology, proportionality, and coherence of the Twinkling White Area (TWA)—is fundamental for high-precision functional lung ultrasound.

This knowledge serves as more than a reference point; it forms an internal cognitive model against which the brain rapidly compares every new ultrasound pattern.

Importantly, this rapid pattern recognition is often mislabeled as “intuition.” Yet we must distinguish sharply between expert intuition—a high-speed perceptual judgment grounded in deep internalized knowledge—and the superficial optimism of ignorance, an illusion of understanding arising from lack of expertise. Here, intuition is not mystical guesswork but the end result of knowing the normal geometry–function relationship so well that deviations become instantly visible.

Much like looking through a window and immediately sensing both the weather and the time of day—not through speculation, but through decoding known atmospheric cues—the clinician who understands normal TWA geometry can instantly distinguish whether an image represents a healthy state or a Sick Bat Sign.

Through this conceptual lens, the three peripheral lung phenotypes emerge as distinct “atmospheric” signatures, each expressing a unique harmony—and disharmony—between geometry and function.

Emphysema – Geometric Compression and Black-Dominant Atmosphere (“Nightfall Pattern”)

In emphysema, hyperinflation generates deep, uninterrupted black aeration that overtakes the sonographic field.
The subpleural functional architecture collapses in its vertical dimension:

• the TWA becomes short, truncated, and disproportionately wide,
• its natural vertical proportionality is lost,
• micro-reflective subpleural interfaces are progressively obliterated,
• the rib-shadow corridors become narrower, shorter, and less sharply defined, reflecting loss of the subpleural density that normally sustains their depth and contrast,
• and the pleural line expresses a compressed, low-complexity reflective boundary.

This geometric distortion is a direct expression of functional decline: alveolar overdistension, loss of elastic recoil, and destruction of the peripheral capillary–interstitial network, which normally generates micro-reflections and structural depth.

Visually, this creates the nightfall atmosphere, where brightness collapses into a low, horizontal band, while the image above and below it becomes dominated by darkness—an immediate geometric signature of emphysematous hyperinflation. (Figure 7: Nightfall pattern)

Chronic Bronchitis – Geometric Elongation and Diffuse Subpleural Brightness (“Foggy Dawn Pattern”)

Chronic bronchitis produces a diametrically different transformation.

Here, the TWA becomes elongated, extending downwards along its vertical axis:

• vertical continuity increases,
• brightness becomes diffuse and subtly hazy,
• contour irregularities reflect peripheral airway remodeling,
• subpleural reflectivity intensifies due to increased density, mucosal edema, and airflow irregularity,
• yet alveolar architecture remains preserved, preventing the collapse seen in emphysema.

This elongation is a geometric expression of functional obstruction without hyperinflation. The reflective interface gains depth but loses crispness, resembling a foggy dawn where light is present but softened through suspended density.

The rib shadows remain structurally preserved but appear visually longer relative to the expanded TWA, reinforcing the impression of an extended, thickened subpleural interface.

(Figure 8: Foggy dawn pattern)

Normal Lung – Geometric Equilibrium and Stable Reflective Pattern (“Cloud in a Clear Sky Pattern”)

The normal lung sets the archetype for comparison. Its TWA demonstrates:

• balanced width-to-length proportions,
• clean, symmetric transitions into the rib shadows,
• crisp but gentle margins,
• stable brightness without diffusion,
• and coherent geometry expressing intact pleural integrity and physiologic aeration.

This appearance is neither exaggerated nor attenuated; it is structurally harmonious, representing the healthy interaction between the pleural layers and the subpleural microarchitecture.

Visually, it resembles a white cloud in a clear sky—defined, bright, and suspended in a stable environment.

This equilibrium becomes the baseline atmospheric state from which deviations toward nightfall (compression) or foggy dawn (elongation) are immediately perceivable to the informed eye. (Figure 9: Cloud in a clear sky pattern)

Integrating TWA motion, rib-shadow displacement, and pleural kinetics allows the quantification of airflow changes and obstruction patterns at the bedside. This approach inaugurates Functional Sonopulmonology, transforming lung ultrasound into a visual spirometer for obstructive syndromes [4,5].

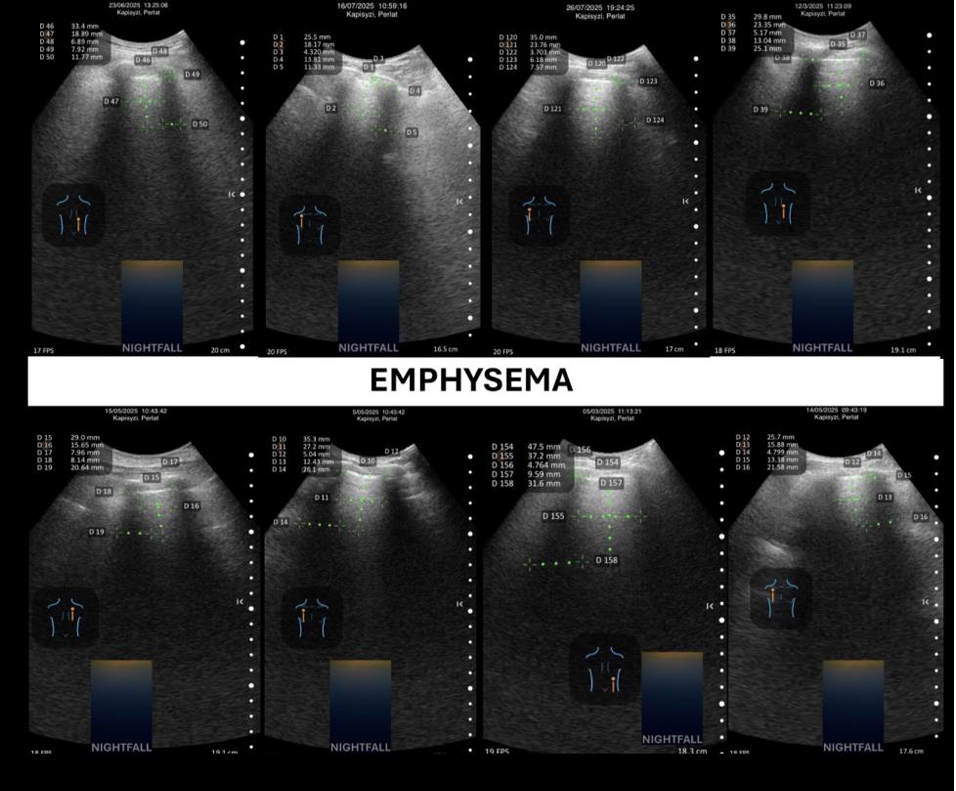

Figure 7: Nightfall pattern.

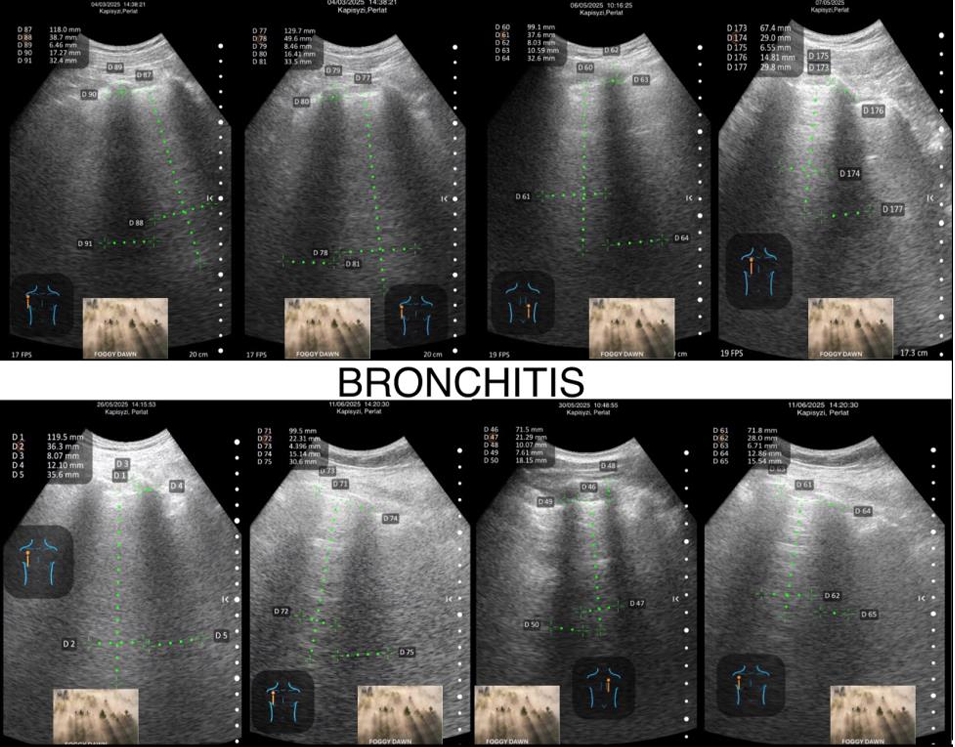

Figure 8: Foggy dawn pattern.

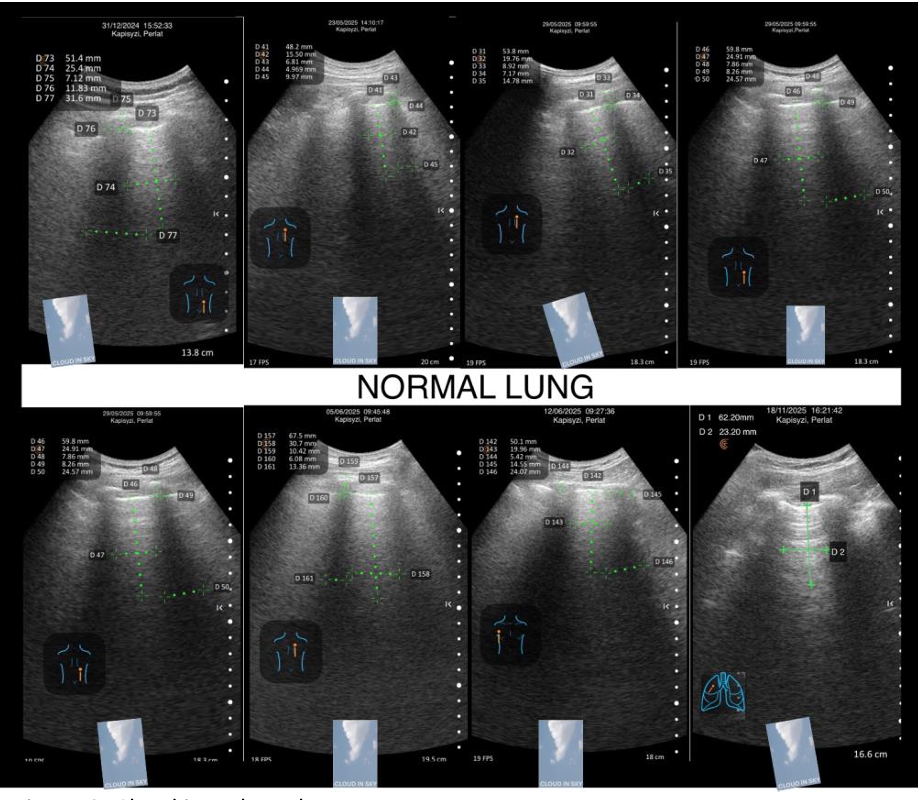

Figure 9: Cloud in a clear sky pattern.

A New Geometric Marker of Chronic Visceral Pleuritis and Vascular Chronicity

The pleural separation sign represents a novel geometric–functional observation in lung ultrasound: the distinct visualization of the parietal and visceral pleura as two clearly separated echogenic lines, rather than as a single fused pleural complex.

This uncommon appearance emerged through systematic imaging with 2.5–5 MHz Clarius transducers, which allow the discrimination of pleural micro-geometry.

Importantly, the sign does not suggest acute exudative pleuritis. Instead, the pattern—subtle yet disproportionate separation between the pleural layers—combined with consecutive pleural interruptions, is far more compatible with chronic remodeling of the visceral pleura.

Such remodeling may include:

• thickened fibrotic laminae,
• chronic inflammatory deposition,
• low-grade fibrovascular change,
• and altered sliding behavior that increases the visual distance between layers.

In this framework, pleural separation becomes a functional signature: a marker of chronic, non-exudative, viscerally confined inflammatory processes rather than acute pleural disease.

Crucially, in the vascular context, this geometry acquires additional diagnostic value.

When present alongside hypo perfused subpleural territories, pleural separation may offer a non-invasive sonographic clue for differentiating chronic from acute pulmonary embolism, reflecting the chronicity of pleural–subpleural interaction in long-standing vascular obstruction. (Figure 10,11,12)

Thus, the pleural separation sign contributes to the emerging ecosystem of functional, geometry-based markers in lung ultrasound, reinforcing the paradigm that structural geometry mirrors underlying physiology, chronicity, and vascular history.[6].

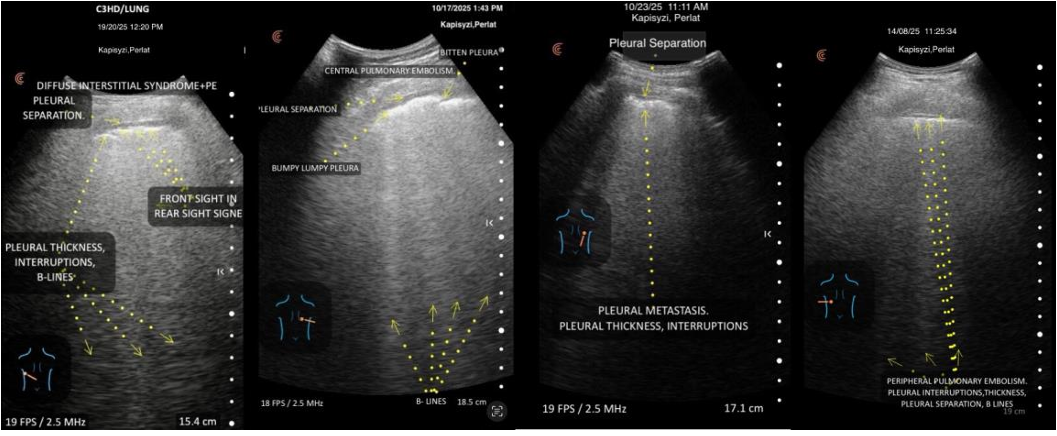

Figure 10: Pleural separation

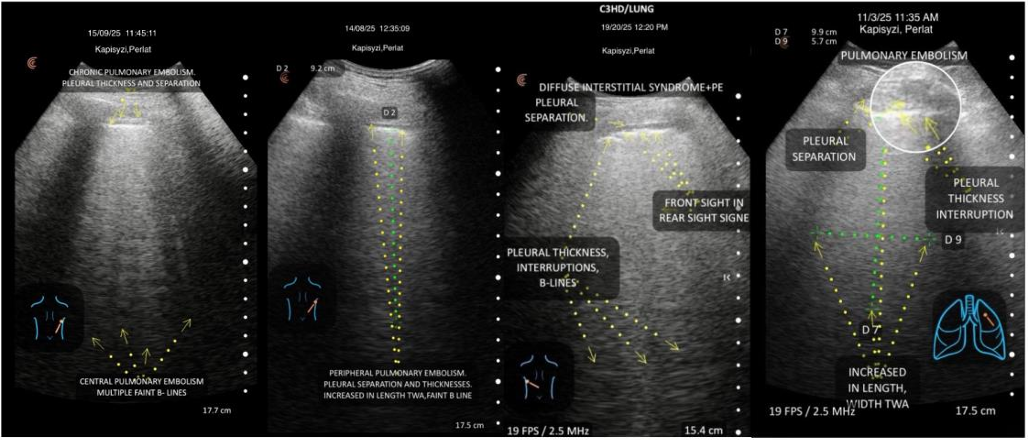

Figure 11: Pleural separations.

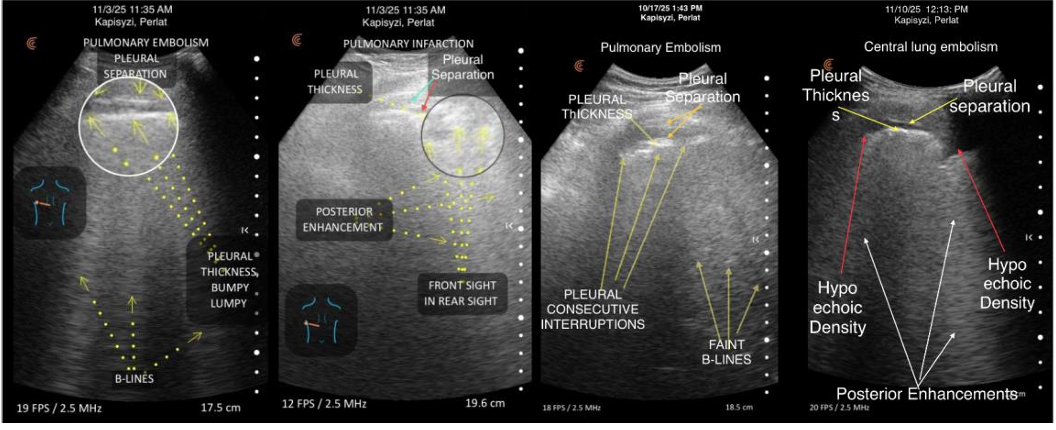

Figure 12: Pleural separations.

This integrated framework formally establishes Functional Lung Ultrasound (FLUS) as a real-time, bedside “functional imaging” modality, in which echo morphology, motion analysis, and perfusion patterns translate directly into functional assessment of airflow, density distribution, and peripheral vascular dynamics. By unifying structural and physiological echo phenomena, FLUS positions lung ultrasound as a true functional imaging tool for obstructive, interstitial, infectious, malignant, and vascular lung syndromes.
